More than just pumps

Pumping, emptying, mixing, filling and metering ‒ when liquids are set in motion the requirements are very diverse. In any event the process must run smoothly. This is what the FLUX brand name stands for. It is recognised across the globe  as a byword for quality, for safety and for solutions which are able to fulfil every single demand on a long-term basis.

1.Drum and container pumps(插桶泵)

For pumping low viscosity fluids out of various containers

FLUX drum and container pumps.jpg

FLUX drum and container pumps are suitable for  pumping various low-viscosity and also especially  aggressive and highly-flammable fluids. The axial- impeller pumps provide a pulsation-free pumping  action. Constructed on the modular design, different pumps are able to be driven by the same motor. As a result of their low weight the pumps can be easily  carried from container to container. The easy handling of motor and pump keeps changeover times short.

Various pumps with and without mechanical seal are available as well as versions for higher pumping heads and mixing pumps. FLUX drum and container pumps are available in versions with explosion protection, with 3A certification as well as FLUX FOOD pumps (Directive (EC) 1935/2004 and FDA CFR 21 compliant). Moreover especially pre-configured pump sets for typical applications are available.

插桶泵技术参数1.jpg  Battery motor FBM-B 3100 — the solution where cables are problematic or not desired..jpg

Battery motor FBM-B 3100 — the solution where cables are problematic or not desired.

插桶泵技术参数2.jpg  FLUX FOOD − for application in the food industry..jpg

FLUX FOOD − for application in the food industry.

The small drum pumps JUNIORFLUX and COMBIFLUX are particularly suitable for filling comparatively small  quantities from containers such as cans up to 200 litre drums. The small diameter of the outer tube makes it possible to pump out of tight openings.

JUNIORFLUX

For filling small quantities; with fixed commutator motor

Advantages/characteristics:

Motor and pump with fixed connection

Available with choice of two types of seal

Low overall weight- minimal amount of exertion necessary when changing drums

Can pump out of narrow-necked containers

Examples of media:

Acids and lyes

Fertiliser solutions

Pesticides

Cleaning agents

Demineralized Water (purified water)

-----------------------------------------------------------------------------

2.Drum and container pumps(汽包与容器泵)

For pumping low viscosity fluids out of various containers

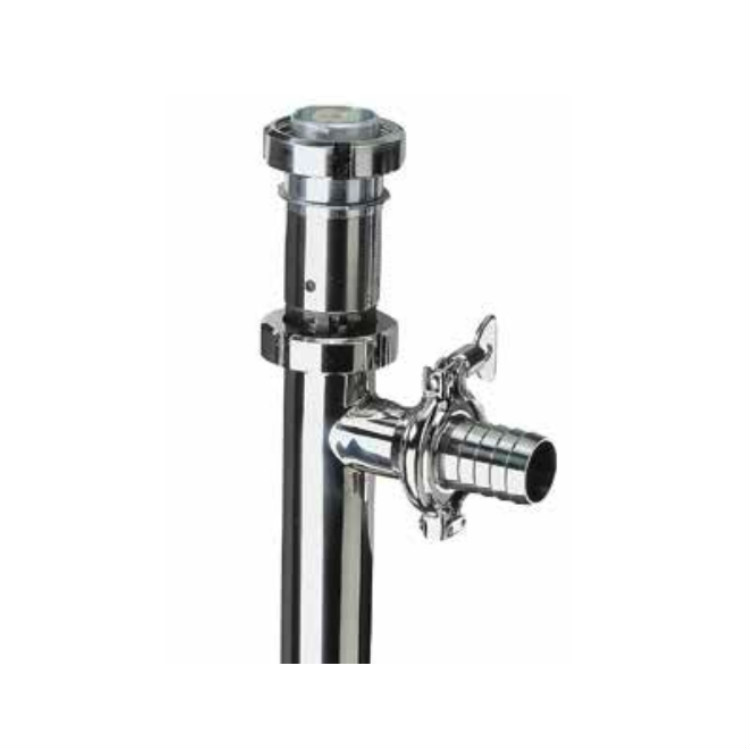

FLUX drum and container pumps are always a "double act" comprising motor and pump. Both components can vary quite flexible. For example different pumps are able to be driven with the same motor. Ideal for reliable pumping of various low-viscosity liquids - incl. especially aggressive and highly flammable ones. As a result of their low weight the pumps can be easily carried from container to container. The easy handling of motor and pump keeps changeover times short.

F 430 / FP 430

With mechanical seal

Advantages/characteristics:

No carrying-over of the medium - one pump can be used  for different media

Easily dismantled for fast cleaning

Immersion depth to 3 000 mm possible

FOOD version available

Stainless steel and Hastelloy C versions can be used in hazardous areas

Available as version for dry running installation

Steel core in the inner tube (PP and PVDF) provides greatest stability and prevents longitudinal changes at  high and low temperatures

Examples of media:

Suitable for almost all low-viscosity fluids incl.

FOOD media


F 424 / FP 424

Sealless design

Advantages/characteristics:

Low-maintenance ‒ due to sealless design

Built to last

Stainless steel version for use in hazardous areas

Non-sensitive to dry running

No contamination from lubricants or wear of seal  materials possible

Examples of media:

Suitable for almost all low-viscosity media

Examples of media:

Suitable for almost all low-viscosity media


F 427 / FP 427

Can be taken apart completely

Advantages/characteristics:

Easy and fast disassembly for cleaning or sterilisation

Can be completely stripped down to individual parts  without using tools

Minimal dead spots

Also available as FOOD and 3A certified version

Examples of media:

Suitable for almost all applications; also for products in the pharmaceutical, FOOD and cosmetics industries

F427.jpg F425.jpg  F426.jpg

F 425 / FP 425

For 99.98 % drum emptying

Advantages/characteristics:

Less than 0.05 l residual amount left in 200 l drum

Flowback stop valve prevents back flow of the medium  into the emptied drum

With optimal use of the product reduced drum cleaning  or waste disposal costs

Stainless steel version can be used in hazardous areas

Highest stability provided by steel core in inner tube;  no longitudinal changes at high and low temperatures

Examples of media:

Valuable, high-quality liquids e.g. cosmetics additives

Toxic, dangerous and environmentally damaging substances

F 426

For mixing and/or pumping

Advantages/characteristics:

For pumping and/or mixing inhomogeneous media

Switch lever for easy changing between mixing/pumping and pumping ‒ during running operation, too

Easily disassembled for fast cleaning

Stainless steel version can be used in hazardous areas

Steel core in the inner tube prevents longitudinal changes at high or low temperatures

Examples of media:

Paints, lacquers, 2-phase mixtures, emulsions

----------------------------------------------------------------------------------------

3.Eccentric worm-drive pumps(偏心螺杆泵)

For pumping low to high-viscosity media


FLUX eccentric worm-drive pumps are suitable for pumping thin to high-viscosity fluids. The displacement pumps work with low turbulence at a constant  pressure and provide for a gentle and pulsation-free operation. Whereas the series 550 pumps are used  in the industrial sector the series 560 is especially  configured for the pharmaceuticals, food and cosmetics industries. All pumps can be used mobile and station- ary, are made of only a few components and easy to disassemble.

There is a choice of versions for immersing in the material and for installing outside the container; versions with explo- sion protection, 3A certification and FLUX FOOD pumps (Directive (EC) 1935/2004 and FDA CFR 21 compliant). For connection of the motor there is a choice between bearing flange (S) and gear (GS). For pumping especially high- viscosity media there are drum emptying systems with  eccentric worm-drive pumps available (see page 25).


Additional advantages/characteristics F 560

Hygienic pump for use in

pharmaceuticals, food and cosmetics industries

Minimal dead spots

Pump/shaft/worm easy to disassemble

Available with inliner suction protection – also suitable for containers with inliners

FOOD version for contact with foodstus according to directives EC 1935/2004 and FDA CFR 21

3A certified versions available

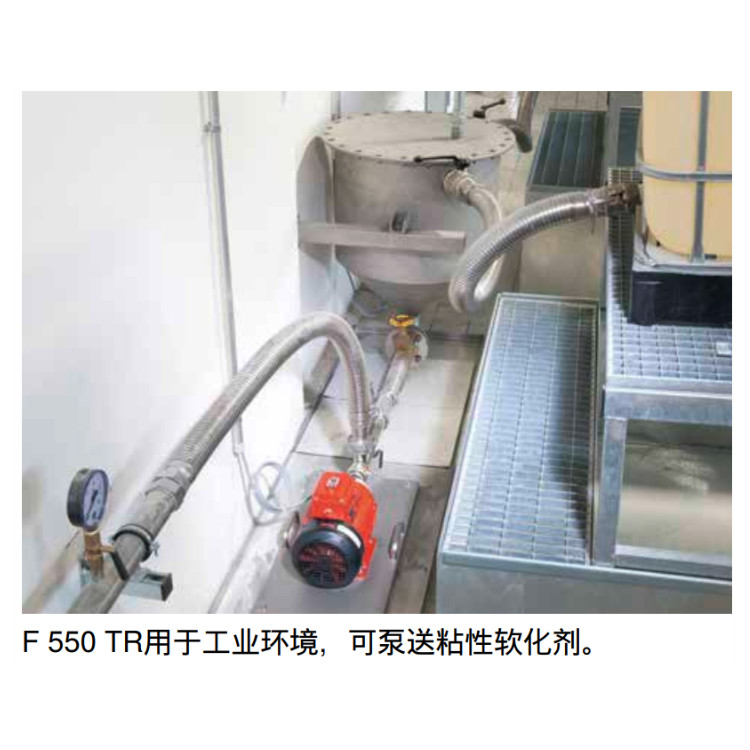

F 550 TR in action in the industrial sector – pumping viscous softener..jpg  F 560 GS in operation in the hygiene sector - pumping raw material for a cream into a mixing vat..jpg

F550 TR in action in the industrial sector – pumping viscous softener.

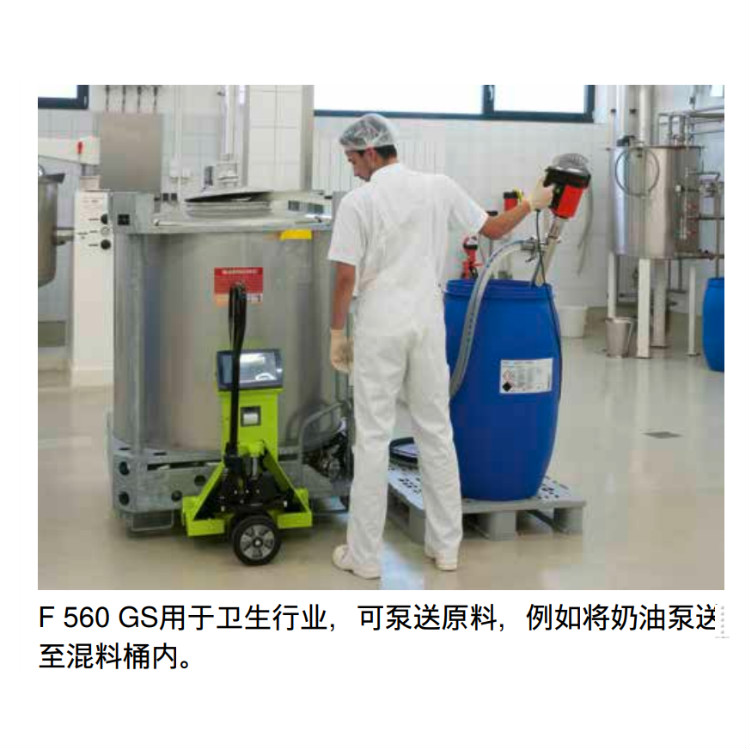

F560 GS in operation in the hygiene sector - pumping raw material for a cream into a mixing vat.

GS/GS6

Eccentric worm-drive pumps F 550/ F 560 with gear

Connection of motor to pump fast and simple with  union nut

For fluids of up to 30 000 mPas (80 000 mPas  with GS6)

Gear ratio 1:15.9 (GS) or 1:6.75 (GS6)

For use with electrical commutator motors, brushless motor and compressed air motors (drum pump version)

Light for mobile use

Available with 3A certification

Explosion-protection version available

Available as FLUX FOOD pump

S

Eccentric worm-drive pumps F 550/ F 560 with bearing flange

Connection of motor via bearing flange

For fluids up to 80 000 mPas

For use with three-phase motors, gear motors and  compressed air motors

Exact metering via impulse generator possible

For long running periods

Extremely quiet

Long service life

For stationary use

Available with 3A certification

With explosion protection certification, where required

Available as FLUX FOOD pump

TR

Eccentric worm-drive pumps

F 550/F 560 for dry installation

For containers which are not accessible from above

Liquid must be free flowing

For increasing pressure in process lines

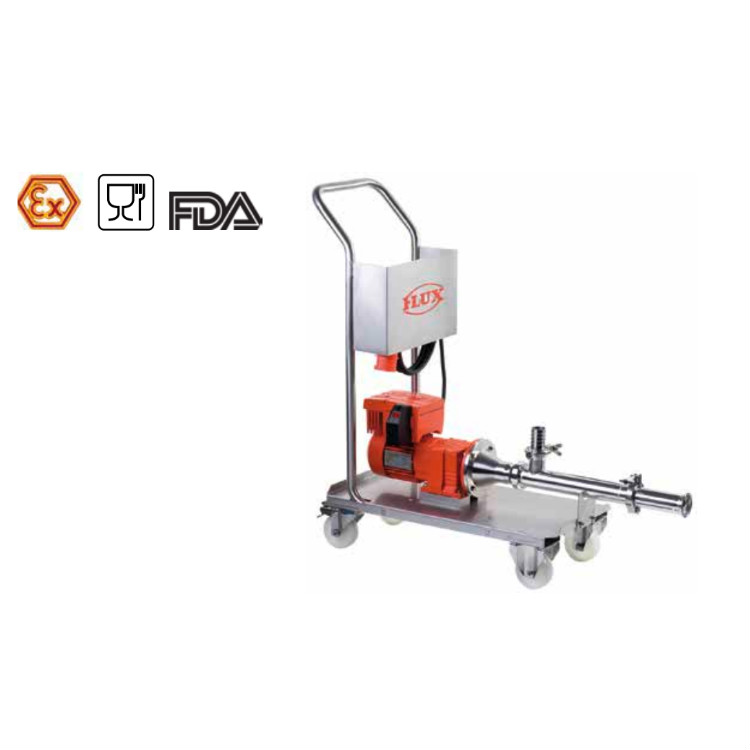

Can be mounted on trolley or panel

For mobile or stationary use

Connection of motor via bearing flange

Versions with anti-clockwise/clockwise running

Pumps for use in hazardous areas available

Also available as FOOD version

Also available with clamp on the bearing flange

GSGS6.jpg  S.jpg  TR.jpg

----------------------------------------------------------------------------------

4. Centrifugal immersion pumps(离心液下泵)

For pumping and circulating large volumes incl. aggressive and abrasive media


FLUX centrifugal immersion pumps are used when larger flow rates, continuous running or special immersion lengths are required. They are especially suitable for pumping and circulating aggressive and abrasive media from small containers up to 4.1 m high tanks. There is  a choice of different materials available depending on the chemical and thermal requirements. In addition sealless and horizontal versions are available. FLUX centrifugal immersion pumps are individually config- ured and manufactured according to the technical  requirements in each case.

AdBlue® underground tank system ‒ Supply of tap  connection by FLUX centrifugal immersion pump F 640..jpg

AdBlue® underground tank system ‒ Supply of tap  connection by FLUX centrifugal immersion pump F 640.

F 716 ‒ Circulation of chemicals in an electroplating bath..jpg  F 640 ‒ Pumping of diluted sulphuric acid out of a pickling tank..jpg

F716 ‒ Circulation of chemicals in an electroplating bath.

F640 ‒ Pumping of diluted sulphuric acid out of a pickling tank.

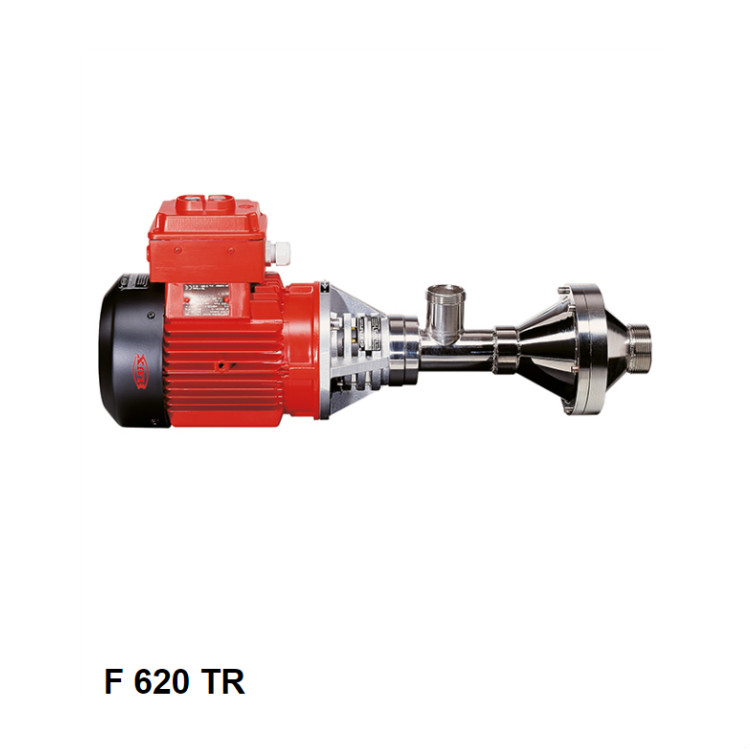

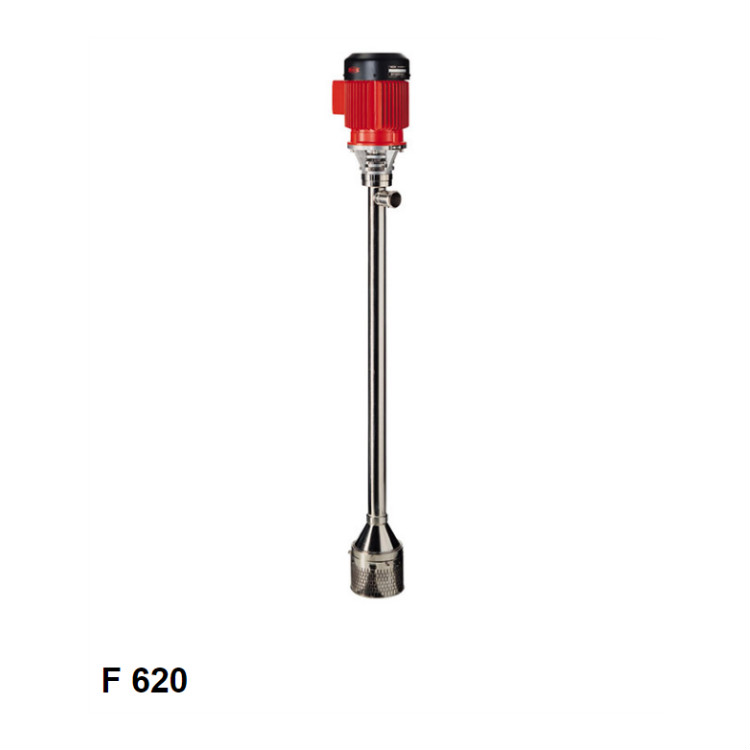

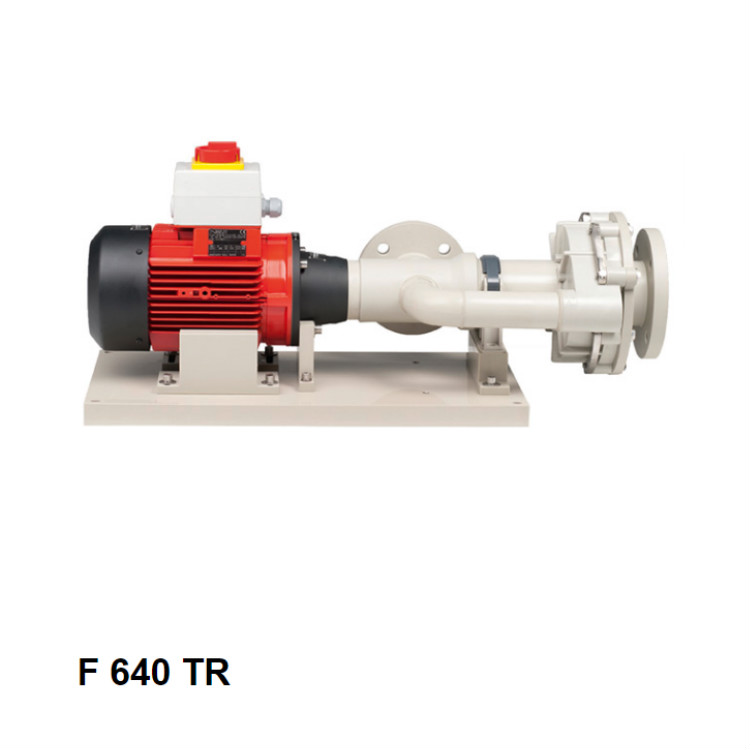

Series 600

Tank pump ‒ for immersion lengths of up to 4 100 mm

Advantages/characteristics:

Centrifugal pump

Tank pump

Suitable for tank heights up to 4.1 m without bottom opening

Also pumps solids-laden fluids

For mobile or stationary use

Pump is hermetically tight

Installation in pressurised tank or gas scrubber possible

Motor replaceable

Available as horizontal version for dry installation

Examples of media:

Anodising solution

Vegetable fibre suspension

Water-based lacquers

Alkaline pickling vats

Industrial effluent

AdBlue®

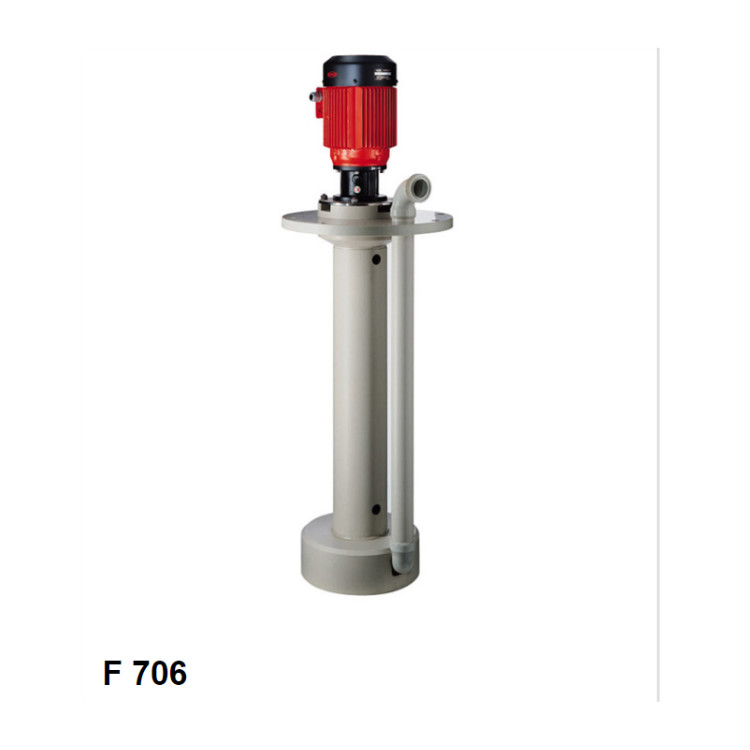

Series 700

Stationary circulating and filter pump ‒ can also be used for continuous running

Advantages/characteristics:

Vertical centrifugal pump

Suitable for continuous operation

Maintenance-free

Sealless in liquid zone

Extremely long lifetime

Highest stability from steel core in the inner tube; no  longitudinal change at high or low temperatures

Examples of media:

Electroplating baths with e.g. copper sulphate, chromium and zinc electrolytes

Chemically aggressive liquids such as anorganic and  organic acids, lyes and salts

-------------------------------------------------------------------------------------

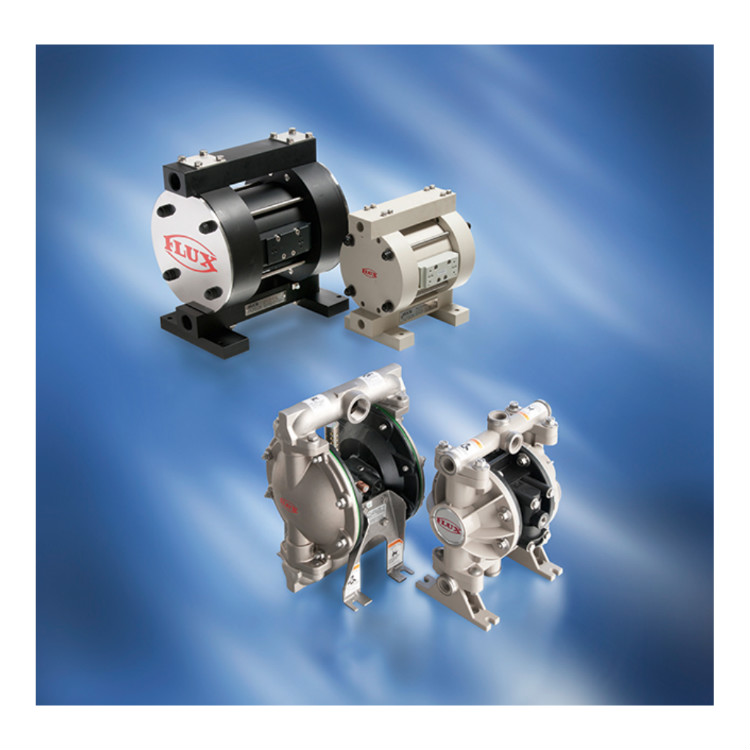

5. Air-operated diaphragm pumps(气动隔膜泵)

Self-priming pumps also for pumping abrasive media

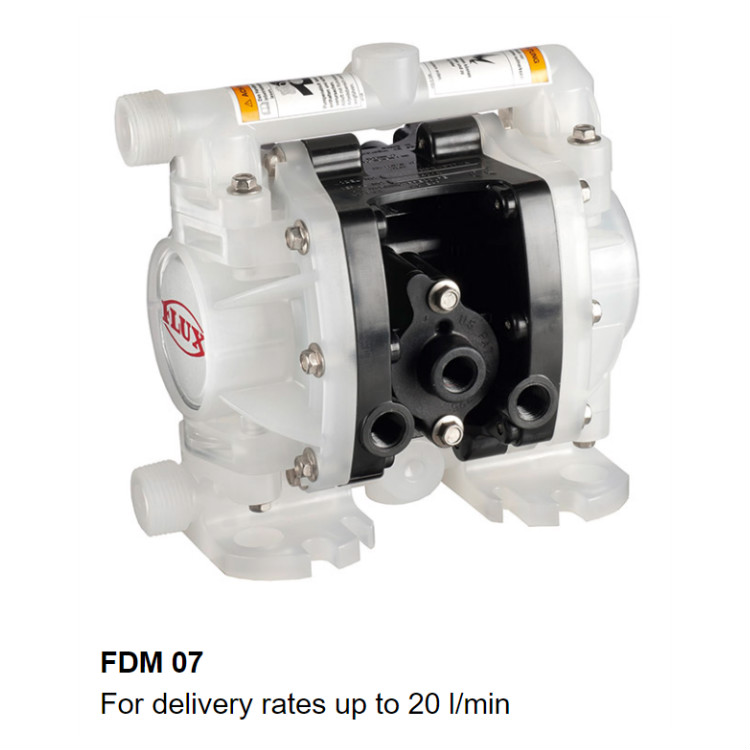

FLUX compressed air-operated diaphragm pumps are self-priming and protected against dry running. The pumps are distinguished for their versatility and can  be used for virtually all types of media. Available in heavy duty (RFM) or injection-moulded/cast (FDM)  version for a huge diversity of applications they are designed for high pressures of up to 8 bars and in  addition to other properties they are outstanding for their ease of handling. The 100 % start-up guarantee in  every shut-down position guarantees reliability and safe operation. The flow is infinitely variable via the air pressure. In addition the flow rate is easy to calculate. As a result of the integrated silencer the compressed air-operated diaphragm pumps are low noise. In addi- tion the pumps are low-maintenance, in particular if used for pure media.


Metering/control

Versions with cycle control via solenoid valve  available

Version with fitted stroke counter available –  combined with the evaluation unit FLUXTRONIC® it makes perfect metering possible (e.g. for colour mixing machines; for filling paint robots)

FDMPumping of chemical nickel for electroplating bath..jpg  RFMPumping of concrete additives from IBCs into  mixing tower..jpg

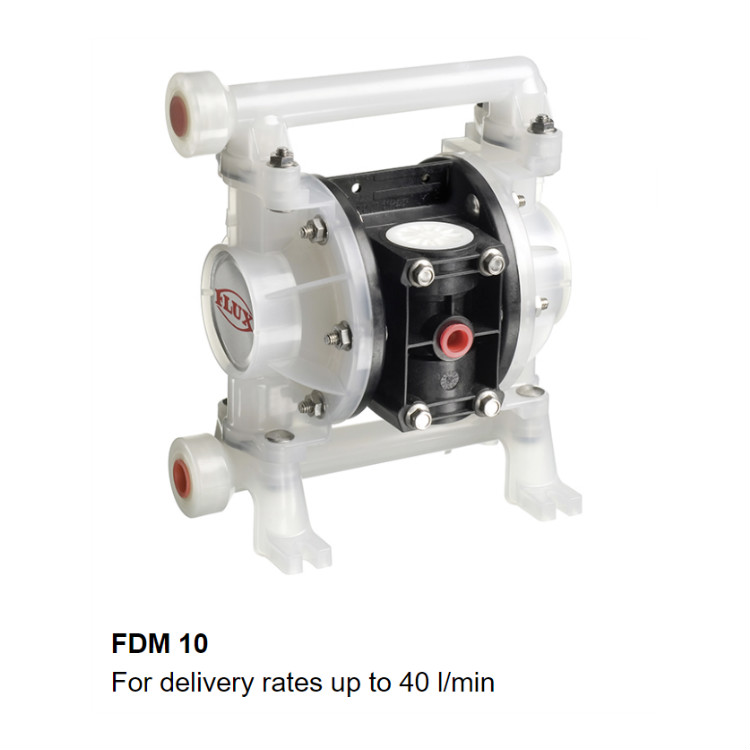

FDM: Pumping of chemical nickel for electroplating bath.

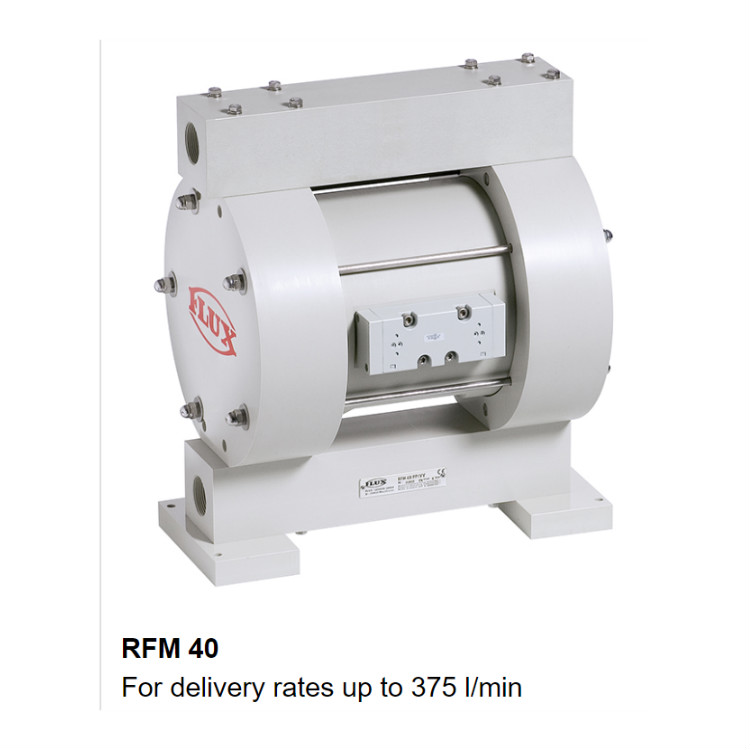

RFM: Pumping of concrete additives from IBCs into  mixing tower.

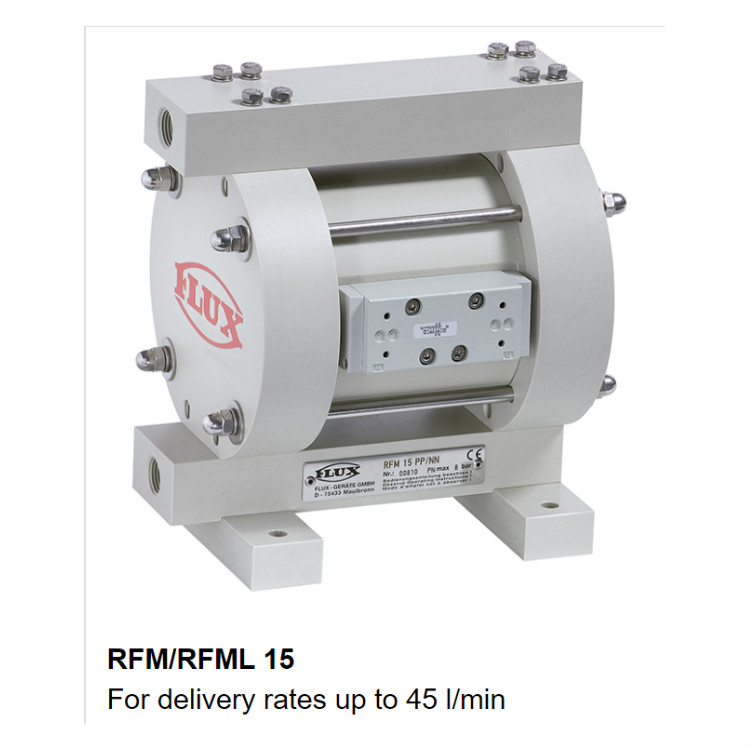

RFM

Heavy duty construction

Advantages/characteristics:

Almost completely diffusion resistant due to the  thick-surface structure

Virtually no passive corrosion

Due to composite enduring membrane even at  high pressures

Versions available with flap valves

Extremely long service life even with abrasive media  (e.g. enamels, slurries or abrasive glass dust)

Quiet/low noise

Versions available for use in hazardous areas

FDA-certified version available

气动隔膜泵参数2.jpg  气动隔膜泵参数3.jpg

Examples of media:

Highly concentrated sodium hydrochlorite

Media containing chlorine

Effluent from industrial hardening machinery

Solvent mixtures

Pickling vats

-----------------------------------------------------------------------------------------

6. Flow meters(流量计/流速计)

For manual or semi-automatic filling of different fluids


FLUX flow meters constructed on the nutating disc  principle (FMC), oval rotor (FMO) or the turbine principle (FMT), provide the right solution for every application. Depending on model and overall size they can be used on e.g. FLUX drum pumps or stationary e.g. in pipe  lines. Using the digital display unit FLUXTRONIC® for FMC and FMO filling and metering processes can be carried out for virtually all liquids with maximum  precision and the greatest possible safety. In automatic mode there is the possibility of transmitting signals  for control purposes. In this way differing processes can be regulated.

流量计参数1.jpg  Semi-automatic can filling in explosion zone 1..jpg

FLUXTRONIC®

Due to the digital display unit FLUXTRONIC® fitted to flow meters FMC and FMO there are two operating modes  available. Whereas in "normal mode" only the flow volume  is displayed, in automatic mode it is possible to fill pre- programmed amounts of liquid semi-automatically ‒ at the push of a button. As soon as the desired quantity has  been filled two signals can be transmitted. In this way  for example a valve or drive motor can be controlled

or the signal transferred to a PLC.

Digital display unit FLUXTRONIC® can be fitted to flow meter or directly to the hand nozzle..jpg

Digital display unit FLUXTRONIC® can be fitted to flow meter or directly to the hand nozzle.

Flow meter FMC

For low-viscosity fluids also slightly soiled

Advantages/characteristics:

Constructed on the nutating disc principle

Non sensitive to small particles

Media temperatures up to 80 °C

Easy handling

High wear resistance ‒ large choice of materials

Non sensitive functional principle

Low weight

For low-viscosity media

Operational in any installed position

Can be calibrated

Examples of media:

Formic acid, arsenic acid, boric acid, brake fluid, calcium chloride, acetic acid, iron III chloride, glycol, sodium  hydroxide, zinc chloride, citric acid, flammable media

流量计参数2.jpg  流量计参数3.jpg

Flow meter FMO

For pure fluids incl. high-viscosity liquids

Advantages/characteristics:

Constructed on the oval rotor principle

Very precise metering possible

Media temperatures up to max. 120 °C

High wear resistance

Also for high pressures

Extensive flow volume range

Extensive viscosity range

Can also be used with pulsating flows ‒ e.g. in combination  with compressed air-operated diaphragm pumps

Low pressure loss

Can be calibrated

Examples of media:

Oils, petrol, solvents incl. media which are not self-lubricating

Flow meter FMT

For pure low-viscosity fluids

Advantages/characteristics:

Constructed on the turbine principle

For JUNIORFLUX/COMBIFLUX pumps

Easy to handle

For small quantities

Simple counting unit ‒ no evaluation possible

Examples of media:

Neutral, aggressive, low-viscosity, non-flammable liquids

------------------------------------------------------------------------------------------

7. Mixers(搅拌器)

Can be custom configured for any mixing operation


Anyone who wants to disperse, emulsify, homogenise, chill, dissolve, mix, neutralise, stir, circulate or  exchange heat efficiently is faced with a demanding task ‒ from a technical and physical point of view.  The mixing effect that flows develop depends on the shape of the container, the material and of course the type of mixer. Due to the flexible modular system FLUX is able to offer a wide range of options. This makes it possible to configure the mixer components of motor, shaft and mixing blade optimally for the application's requirements.

Fast runners

For low to medium viscosity media and small containers

Advantages/characteristics:

Circulating performance up to 650 m³/h

Speeds 750 – 1 500 rpm

Several mixing blades can also be mounted on top of each other

Ideal for liquids of up to 2 500 mPas

Configured for fluids with max. 5 % solid contend

Suitable for IBCs and tanks of up to approx. 4 000 l

For continous flow systems with 5-20 fold flow per hour

Examples of media:

Milk of lime with solution of up to 5 %

For chemicals use e.g. aluminium sulphate, ferric chloride

Slow runners

For high circulation performance

Advantages/characteristics:

Circulating performance up to 3 600 m³/h

Low speed of approx. 70 rpm

For fluids of up to a viscosity of 10 000 mPas

With gear

Versions available with sliding or folding agitators

Can be used in tanks

For liquids with max. 10 % solids

For run-through systems with 10 – 40 fold flow per hour

Examples of media:

Milk of lime with solution of up to 30 %

Flocculant additive with a viscosity of 300 mPas

-------------------------------------------------------------------------------

8. Additional products and accessories(额外附属配件)

Comprehensive range of accessories for all FLUX pump models


Fume gland

For aggressive and corrosive media

Advantages/characteristics:

Hermetically seals container

The venting valve ensures that the pressure of the tank  being emptied is compensated.

Optimum protection for operator and environment

Where necessary the motor is protected from  corrosive vapours

Designed for FLUX drum pumps series 300, 400 and 500

Examples of media:

Acids, lyes and media with aggressive and hazardous vapours

附属配件2.jpg  附属配件3.jpg

Hand nozzles

For simple filling

Advantages/characteristics:

Ergonomically shaped hand lever

Easy to operate

Fine metering

Ball-bearing mounted swivel joint

Low pressure loss

High flow rate

Can be combined with stop valve, emission-protection cone and various outlet nozzles

Examples of media:

Boric acid, phosphorous, hydrochloric acid and sulphuric acid, potassium and sodium hydroxides, ammonium water and hydrobromic acid

-------------------------------------------------------------------------------

9. Filling systems(灌装系统)

Manual and semi-automatic metering systems for use with drum pumps


Manual filling systems

For fast and safe filling of various media from drums and IBCs

There is a choice of pre-configured pump sets consisting  of the components drum pump, drive motor, hose line and hand nozzle. These are available for:

Acids and lyes, concentrated acids and AdBlue®,  mineral oil products, highly flammable liquids,  universal applications; 99.98 % drum emptying

Furthermore all pumps can be combined with individually selectable accessories to form a customized set for the  particular application. For example together with a flow  meter for improved metering.

灌装系统2.jpg  灌装系统3.jpg

Semi-automatic filling systems

Fast and safe metering of preset quantity

Advantages/characteristics:

Fill quantity setting via FLUXTRONIC®

Economic alternative to conventional automatic filling  machines and stations

Two versions:

radio controlled (Directive 1999/5/EC compliant) or wired in (e.g. can also be used in hazardous areas)

Comprising drum pump, drive motor, hose line, flow meter, circuit amplifier and FLUX discharge unit with spring valve

Discharge fitting ‒ semi-automatic; filling operation is  controlled via start/stop button

-------------------------------------------------------------------------------

10 .Drum emptying systems VISCOFLUX(排空系统)

For pumping high-viscosity media out of lidded drums


VISCOFLUX lite

The FLUX specialist for pumping high-viscosity media just capable of flowing.

Advantages/characteristics:

Only a few components means fast fitting

For ISO lidded drums with outside Ø 571.5 mm

Non-explosion protected version designed for pump with  Ø 54 mm, Ex-protected version for pump with Ø 50 mm

Examples of media:

From media barely capable of flowing to grease classification 2Soft lubricating grease (NLGI classification 0-2)

Base material for lacquers, adhesives, construction bonds  and fixing compounds

VISCOFLUX

The FLUX specialist for high-viscosity media

Advantages/characteristics:

High flexibility provided by mobility of system

User-friendly handling

Pumps media not capable of flowing on their own

Remaining residue in drum <1 %

FDA CFR 21 compliant available

Examples of media:

Vaseline

Lanolin

Semi-solid lubricants (NLGI classification 3)

Lacquers and silicones

Fibre-reinforced composites

VISCOFLUX mobile S

The stand-alone solution for pumping high-viscosity media

Advantages/characteristics:

Stand-alone system uses mobile process equipment

Easy to clean

Also for conical, board and seaworthy container drums

Various control possibilities optional

FLUX FOOD version available, suitable for foodstuffs  according to EC 1935/2004 and FDA CFR 21

Examples of media:

Industrial version:

Coating and casting compounds

Lacquers

Pharmaceuticals, foodstuffs and cosmetic sector version:

Tomato purée (also from drums with inliners)

Creams and ointments e.g. zinc oxide ointments

Vaseline

------------------------------------------------------------------------------


Product display

  • No file

Data download

  • No file
