10-TMM

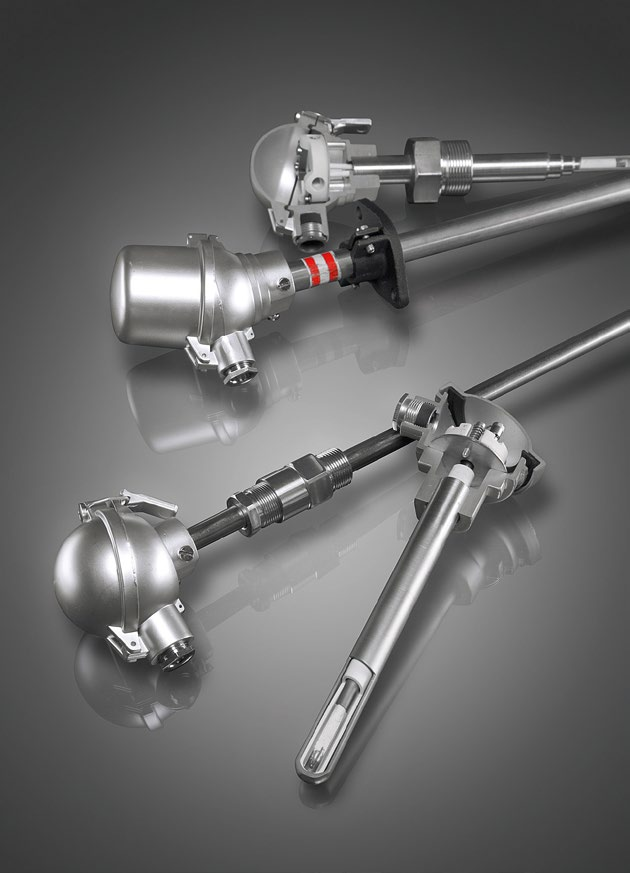

Thermocouple assemblies with metal protection tube and sheathed mineral-insulated measuring insert
Straight line thermocouples with metal protection tubes and sheathed mineral-insulated measuring insert (10-TMM) are used for general temperature measurement in liquid, gaseous and plastic media up to 1200°C.
The main difference to thermocouples with ceramic protection tubes (00-TMT) lies in the use of a sheathed mineral-insulated measuring insert. The thermocouple wires are fully embedded in a highly pure magnesium oxide with an additional metallic sheath. The advantages compared to thermocouples with ceramic protec- tion tubes include:
• Easy replacement
• Vibration and impact resistance
• Increased holding time
• Possibility for test bores
In order to achieve extra speed in measuring temperature changes, we also offer these temperature sensors with tapered sensor tip.
The thermoelectric voltages and tolerances of our mineral insulated sensor inserts are according to standard DIN EN 60584, class 1.
Application examples for thermocouple assemblies with metal protection tube and sheathed mineral-insulated measuring insert
Waste recycling / waste incineration Glass industry
Plant and machine construction
Steel and iron industry
Automobile industry Laboratories
Industrial furnace construction
Aluminium and non-ferrous metal industry
Cement and building material industry
Energy production
