08-TMP

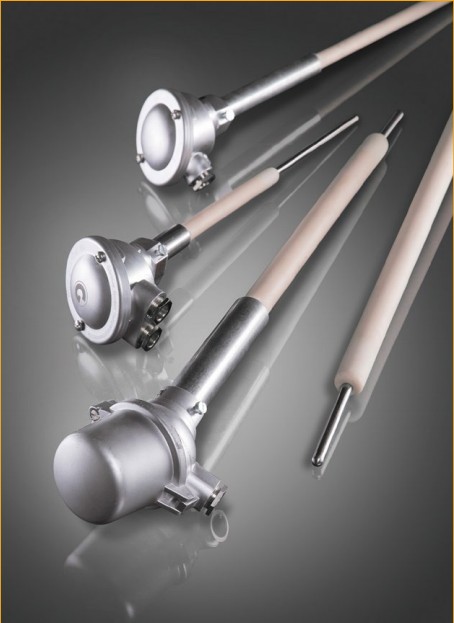

Thermocouple assemblies with noble metal protection tube
Straight line thermocouple assemblies with noble metal protec- tion tube (08-TMP) are used in the glass industry for temperature measurement in glass melting. The applied protection tubes consist of alloyed noble metals. In order to meet the extreme environment conditions, only high grade materials are used in production.
A large selection of various dimensions and platinum alloys are available from stock in order to ensure fast delivery times.
Aside from alloying with other metals such as iridium and rhodium, we offer dispersion-hardened protection tubes and platinum coated ceramic tubes.
Thermocouples are available as required, in single, double or triple element version.
Also, GÜNTHER GmbH will deliver bubbler pipes or glass level probes in various versions according to customer specifications.
Thermoelectric voltages and tolerances are according to DIN EN 60584, class 1 for thermocouple types S and R, class 2 for thermo- couple type B.

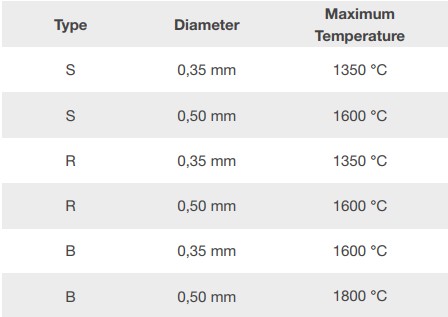

Operation temperature
for platinum-rhodium/platinum thermocouples
GÜNTHER GmbH has been a supplier of thermocouples for over 50 years to the following sectors of the glass industry:
• Container glass
• Fibreglass
• Sheet glass
• Glass wool
• Dinnerware glass
• Dinnerware glass
• Medical glass
