00-TMT

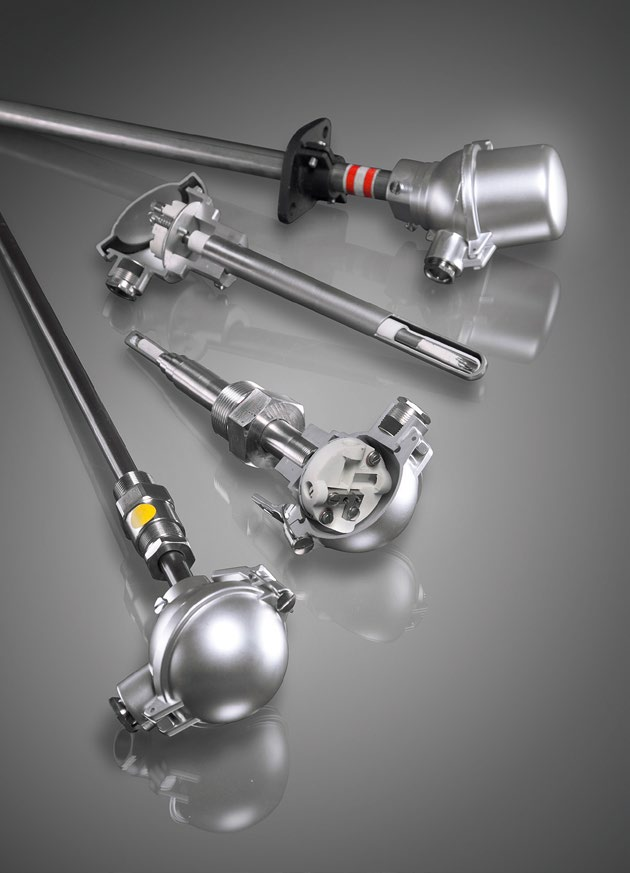

Thermocouple assemblies with metal protection tube
Straight line thermocouple assemblies with metal protection tubes are used, depending on the properties of the protection tube, for common temperature measurements in liquid, gaseous or plastic mediums up to a temperature of 1200°C.
The protective fittings of this product line are composed of seam welded or seamlessly drawn metal tubing. Depending on the appli- cation, GÜNTHER GmbH has over 40 different, partly high-alloyed materials in a large array of measurements in stock. The tips for the Protection tubes are closed either through hot forming or welded shut with a bottom blank.
Tapered measuring tips may be used in this product line in order to shorten the reaction time. For prolonging the holding time, strengthening the wall thickness and utilization of ceramic inner tubing are possible.
All internationally prevalent thermocouple pairs, detachable process connectors (for example mobile flanges or threaded sleeves) and connection heads are employed.
The selected thermocouple and/or protection tube material with the lowest permissible operating temperature defines the maximum operating temperature of the entire thermocouple assembly.
Thermoelectric voltages and tolerances of our thermocouples are according to DIN EN 60584, class 1. For specialised thermal sen- sors, whose construction and components require technical clarifi- cation, we engineer customized solutions. Please contact us about your specific application requirements in reference to material and assembly and we will develop your optimized individual solution.
Application examples for thermocouple assemblies with metal protection tube:
Waste recycling / waste incineration Glass industry
Plant- and machine construction
Steel and iron industry
Automobile industry
Industrial furnace construction
Aluminium and non-ferrous metal industry
Cement and building material industry
Energy production
